OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length

OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length

15Pin D-Sub Flat Ribbon Cable Assembly

Gold-plated Connector RS232 Cable

Customizable Length DB15 Cable

Lugar de origen:

Jiangsu, China

Nombre de la marca:

RY

Número de modelo:

RY-DB-23215

Éntrenos en contacto con

Pida una cita
OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length
Detalles del producto
Tipo de conector:
Sub-D de 15 pines
Género:
Hombre a Mujer
Gama del conductor:
24-30 AWG
Revestimiento de los conectores:
/nickel-plated dorado
El paso del cable:
0,4 mm, 0,635 mm, 1,0 mm, 1,27 mm
Echada del conector:
0,8 mm, 1,27 mm, 2,0 mm, 2,54 mm
Pines del conector:
6~64P
Color de cables:
Gris con borde rojo o Gris con borde azul o negro con borde blanco
Color del conector:
negro, gris y rojo
Longitud del cable:
10 cm, 15 cm, 30 cm o personalizado
Material:
PBT
Terminales:
bronce y bronce fosforado
Corriente nominal:
1AMP
Tensión máxima:
CA 500 V/1 minuto.
Temperatura de funcionamiento:
-40°C ~ +105°C
Pago y términos de envío
Cantidad de orden mínima
20
Productos relacionados
Buen precio D-Sub 15 Pin DB15 Male to 16Pin Female IDC 2.54MM Pitch Gold-plated Flat Ribbon Cable en línea

D-Sub 15 Pin DB15 Male to 16Pin Female IDC 2.54MM Pitch Gold-plated Flat Ribbon Cable

Consiga el mejor precio
Buen precio Customized Rainbow Harness Flat Ribbon Cable with PVC Insulation and 1.27mm Pitch IDC Connectors en línea

Customized Rainbow Harness Flat Ribbon Cable with PVC Insulation and 1.27mm Pitch IDC Connectors

Consiga el mejor precio
Buen precio 1.27mm Pitch 30AWG Gold-Plated IDC Connector Flexible Flat Ribbon Cable for Electronics en línea

1.27mm Pitch 30AWG Gold-Plated IDC Connector Flexible Flat Ribbon Cable for Electronics

Consiga el mejor precio
Buen precio 37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly en línea

37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly

Consiga el mejor precio
Éntrenos en contacto con
86--13405295160
info@rygroup.net
Contacto ahora
Descripción de producto

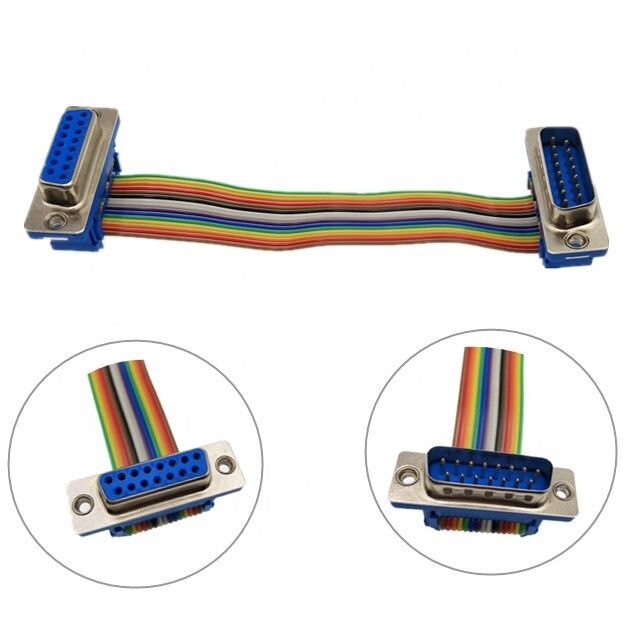

OEM ODM RS232 15Pin D-Sub Male to Female DB15 Flat Ribbon Cable Assembly
Professional RS232 DB15 flat ribbon cable assembly featuring male to female connectors, designed for reliable data and power transmission in industrial and electronic applications.
Product Specifications
Wire Mold UL2678, UL2651
Cable Pitch Range 0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch Range 0.8mm, 1.27mm, 2.0mm, 2.54mm
Conductor Range 24-30AWG
Connector Pins 6~40P, 6~50P, 6~64P
Cable Color Grey with red edge, Grey with blue edge, or Black with white edge
Connector Color Black, grey, or red
Cable Length 10cm, 15cm, 30cm or customized
Applications Computer/desktop data transfer, Power transfer, Electronics, Communication data transfer
Certifications Hook Up wire, UL, VDE, CSA
Material SORY standard PBT
Terminals Bronze and phosphor bronze
Connector Plating Gold-plated / nickel-plated
Rated Current 1Amp
Maximum Voltage AC 500V / 1 Minute
Insulation Resistance 1000mΩ
Contact Resistance 15mΩ
Operating Temperature -40°C ~ +105°C
OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 0 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 1
Related Products
OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 2 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 3 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 4 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 5
Manufacturing Expertise
RY Electronics brings over 10 years of experience in designing and manufacturing custom cable assemblies and antennas. Our facilities support both large and small volume production of various cable types including LVDS cables, flat cables, RF cables, wire harnesses, as well as GPS, WIFI, ISM, GSM, 3G, 4G antennas and RF connectors.
Our Advantages
  • Quality Control: Most products certified with CE, ROHS, and ISO9001:2008
  • Low MOQ: 5pcs/10pcs/20pcs/50pcs depending on product type
  • Fast Delivery: 2-15 days with on-time delivery guarantee
  • After-Sales Service: Technical support and return service available
  • Warranty: 1 Year comprehensive warranty
  • Customization: Full OEM/ODM services available
  • Alibaba Trade Assurance: 100% product quality, on-time shipment, and payment protection
OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 6 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 7 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 8 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 9 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 10 OEM ODM RS232 15Pin D-Sub Gold-plated Connector Flat Ribbon Cable Assembly with Customizable Length 11
Frequently Asked Questions
What is your company's main product? Are you a manufacturer or trader?
We are a wire harness and antenna manufacturer with more than 10 years of experience, located in Suzhou, Jiangsu.
How can I get a quote for my product?
Send us your message via email or TradeManager, and our sales staff will reply as soon as possible.
How does your company do in terms of quality control?
  • All raw materials are selected for highest quality
  • Professional technical workers handle every production detail
  • Quality control department inspects each manufacturing process
Do you provide OEM project services?
OEM & ODM orders are welcome. We have extensive experience in successful OEM projects, and our R&D team provides professional suggestions.
How can I get samples?
We provide free samples, but customers need to pay international express delivery fees. If you have an express account or freight forwarder in China, you can arrange sample collection.
How long is the delivery time?
  • Sampling time: 1-3 days
  • Small batch orders: 3-10 days
  • Bulk orders: 10-18 days
Please contact us for specific order timelines.
