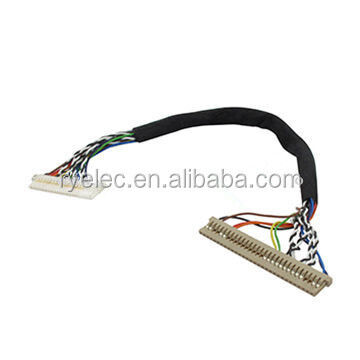

30-pin LVDS Cable with Socket Connector to Round Wire Harness
High-quality 30-pin LVDS cable assembly featuring LVDS socket connector to round wire harness, designed for PCB LCD panel monitor display applications.
Product Specifications
| Specification |
Details |
| Cable Type |
32AWG, 30AWG, 28AWG, 26AWG
LCD 20-core single/double shield cable
LCD 32-core single/double shield cable
LCD 20/32-core non-shield cable |
| Cable Color |
Black/Grey |
| Connectors |
JAE, HRS, JST, AMP, Dupont, I-pex, Molex, YH, ACES, FCI, DDK, UJU, JWT, Panasonic |
| Cable Length |
50mm - 15000mm |
| Processing Methods |
Crimping, pressing, and soldering types |
| Pin Out Connection |
Customized per customer request (provide LCD and main board datasheets) |
| Connector Pitch Range |
0.3mm - 4.2mm |
| Characteristics |
Excellent signal transfer, clear picture quality, stable performance without shaking or transfer issues |
| ISO Certificate |
ISO9001:2008 |
| Additional Standards |
ISO/RoHS compliant |
| Performance Testing |
100% electrical and electricity performance tested |
Key Advantages
Manufacturing Factory
Direct from manufacturer pricing
Competitive Pricing
High quality at competitive prices
Short Lead Time
Quick production and delivery
OEM/ODM Service
Custom solutions available
Applications
LCD/Display systems, Advertising machines, Phones, Laptops, Computers, PDAs, Cameras, LCM, Notebooks, Tablet PCs, HDD, and various electronic devices requiring reliable signal transmission.
LVDS Cable Applications
- Display Systems
- PC and Computer Systems
- Flat Screen TVs
- Printers, Scanners, FAX Machines, Copiers
- Sound Systems
- Liquid Crystal Displays
- Car DVD Systems
- Digital Cameras
- Airbag Systems
- Inkjet Printers
- Pictorial Machines
LVDS cables are essential for signal transmission and internal layout in display systems, flat television sets, printers, scanners, computers, digital cameras, video cameras, fax machines, copiers, and Agilent test equipment.
About RY Electronics
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs. Our manufacturing facilities can build various types of custom cable assemblies including LVDS cables, flat cables, RF cables, wire harnesses, as well as GPS, WIFI, ISM, GSM, 3G, 4G antennas and RF connectors.
Company Advantages
- Quality Control: Most products have CE ROHS certification and ISO9001:2008
- Low MOQ: 5pcs/10pcs/20pcs/50pcs depending on product type
- Fast Delivery: 2-15 days with on-time delivery guarantee
- After-Sales Service: Technical support and return service available
- Warranty: 1 Year Warranty on products
- Customization: OEM/ODM services available
- Trade Assurance: 100% product quality, on-time shipment, and payment protection
Certifications
Packing & Delivery
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample orders are available for quality check and market testing (freight collect payment).
What's the delivery time?
Samples: 1-3 days production time. Bulk orders: 3-7 days production time.
What's your payment term?
We primarily accept T/T, with other payment methods negotiable.
What about quality problems?
We provide technical support and return services for any quality issues.
How to contact us?
Send your inquiry details below and click "Send" - free samples and detailed answers await.
